Pre-Construction Civil Copper Piping Services

Concealed 100% pure copper refrigerant line installation during civil building construction with nitrogen pressure holding tests across Bengaluru.

Civil-Stage Ceiling Concrete Slab Conduit Laying

Laying copper refrigerant piping during the early civil construction phase prevents destructive wall chipping later. We work directly alongside civil engineers, structural architects, and site supervisors to install ceiling slab anchor conduits and multi-floor shafts.

📸 Real Work Site Execution Photos

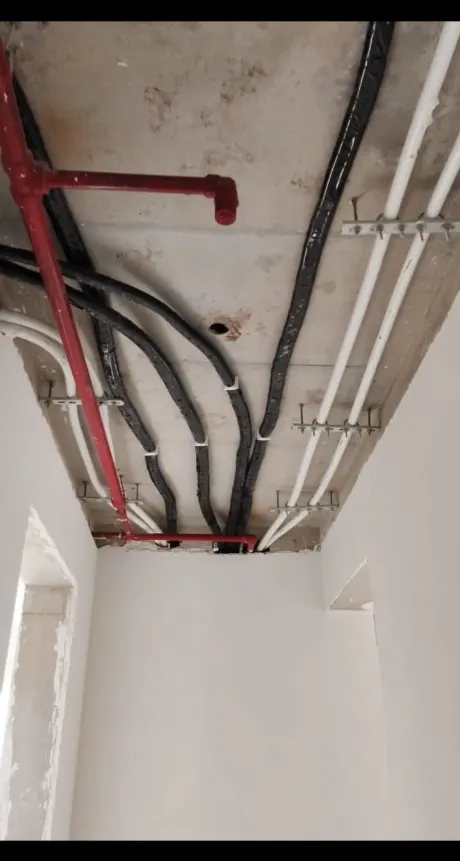

AR Solutions Zone Pre-Construction Concrete Slab Copper Conduit Fitting
Site Photo #1

Ceiling Slab Heavy C-Channel Anchoring

Heavy-duty metal C-channel strut mounting directly onto bare concrete slab, supporting insulated copper runs, fire sprinkler pipes, and rigid PVC drain runs.

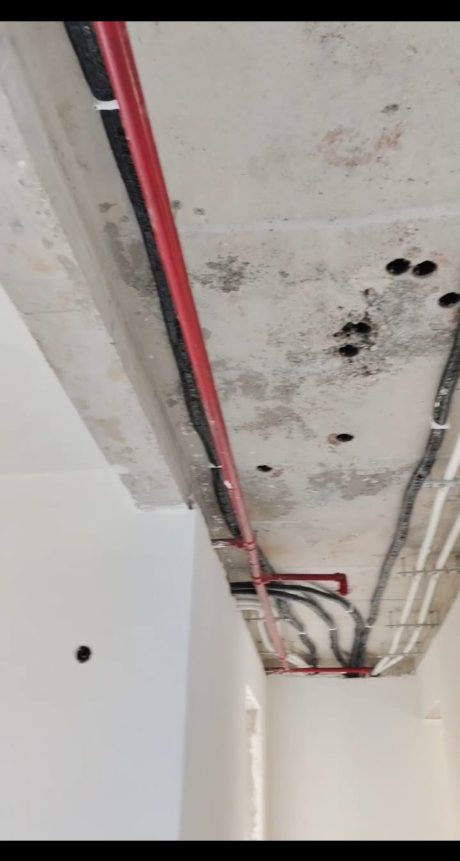

AR Solutions Zone Heavy Gauge Copper Pipe Mounting & Nitrile Insulation
Site Photo #2

Concrete Core Pass-Through & Corridor Trunking

Core-drilled slab pass-through routing for multi-line copper cables encased in fire-retardant Nitrile rubber foam insulation for commercial & villa projects.

Key Civil Engineering Specifications

✓
100% Pure Mandev / Maxflow Heavy Gauge Copper Tubing: SWG 20 / SWG 18 seamless VRF-grade copper tubes resistant to high operating pressures (600+ PSI).
✓
48-Hour 450+ PSI Dry Nitrogen Pressure Holding Test: Every line is pressurized with dry nitrogen and gauge-monitored for 48 hours to guarantee zero pinhole leaks prior to ceiling closing.
✓
Fire-Retardant Nitrile Rubber Insulation: High-density closed-cell insulation prevents moisture condensation dripping inside ceiling voids and brickwork.
✓
Calculated Condensate Drain Line Slope: Rigid PVC drain piping installed with guaranteed 1:100 gravity slope pitch to eliminate water pooling.
✓
Multi-Floor Vertical Shaft Riser Routing: Heavy-duty vertical riser shafts connecting basement or terrace outdoor condenser banks to individual apartment levels.

5-Stage Civil Construction Piping Workflow

1

Civil Blueprint & Shaft Audit

Collaborating with structural engineers to map ceiling core drill points, vertical riser shafts, and outdoor unit terrace pads.

2

Core Drilling & C-Channel Mounting

Precision diamond core drilling through concrete slabs and anchoring heavy slotted C-channel support struts along ceiling corridors.

3

Multi-Line VRF Copper & Drain Run Laying

Laying Mandev / Maxflow VRF-grade copper lines with elastomeric foam insulation sleeves alongside sloped PVC condensate drainage.

4

48-Hour 450+ PSI Dry Nitrogen Pressure Holding Test

Pressurizing all ceiling and riser lines with dry nitrogen gas. Calibrated pressure gauges remain sealed to guarantee 0% pressure drop.

5

Civil Sign-Off & Protection Cap Sealing

Braze-sealing copper ends under nitrogen atmosphere and handing over certified layout documentation to civil & interior contractors.

Architectural & Civil Blueprint Alignment

We serve residential villas, apartment buildings, commercial towers, IT parks, and commercial complexes across Bengaluru with certified civil HVAC engineers.

Pre-Construction Piping Localities Served in Bengaluru

📍 Whitefield Villa Projects📍 Koramangala Commercial Sites📍 Indiranagar Luxury Homes📍 Sadashivnagar Bungalows📍 HSR Layout Apartment Towers📍 Hebbal High-Rise Condos📍 Yelahanka Commercial Complexes

Pre-Construction Copper Piping FAQs

Installing copper piping during civil construction allows pipes to be embedded directly into concrete slabs, wall chases, and vertical shafts. This eliminates external plastic casing, avoids breaking finished plaster, and delivers a 100% hidden, premium aesthetic.

We use SWG 20 / SWG 18 heavy-gauge VRF pure copper tubing with silver-brazed joints and perform a mandatory 48-hour dry nitrogen pressure test at 450+ PSI. Pressure gauges remain sealed to confirm zero pressure drop before wall plastering.
